MM FC-LC Fiber Optical Patch Cord 1 Meter PVC LSZH 100% 3D Test Indoor Multimode

SHENZHEN KXIND COMMUNICATIONS CO.,LTD
Contact Now

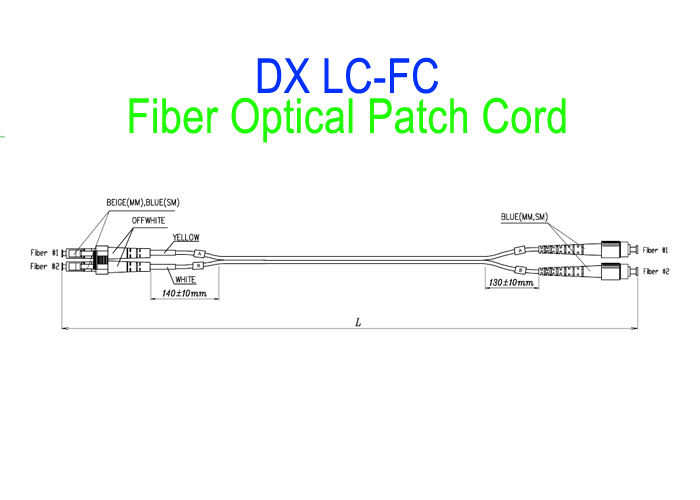

MM FC-LC Fiber Optical Patch Cord 1 Meter PVC LSZH 100% 3D Test Indoor Multimode

  • 1
  • 2
  • 3

Brand Name : KEXINT

Model Number : KXT-PC-FC-Armored

Certification : ISO-9001-2015

Place of Origin : SHENZHEN

MOQ : 1

Price : $+1.5+1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000+pcs+1day

Delivery Time : 7 work day

Packaging Details : 38*38*42cm Carton

Connector Type : FC-UPC-FC/UPC

Buffer Material : PVC or LSZH

Length : 2M

Optical Fiber Type : G652D

Colour : Blue

Return loss : 65 dB

Cable Size : 0.9 mm

Test : 3D 100%

Contact Now

MM FC-LC Fiber Optical Patch Cord 1 Meter PVC LSZH 100% 3D Test Indoor Multimode

Single-mode fiber: General fiber jumpers are shown in yellow, connectors and protective sleeves are blue; transmission distance is longer.
Multi-mode fiber: General fiber jumpers are shown in orange, and some are shown in gray. The connectors and protective sleeves are beige or black; the transmission distance is short.
Optical fiber jumpers can be divided into common silicon-based optical fiber single-mode and multi-mode jumpers according to the different transmission media, as well as other optical fiber jumpers such as plastic, etc .; according to the structure of the connector, they can be divided into: FC Jumper, SC jumper, ST jumper, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, FDDI jumper, E2000 jumper, DIN4 jumper, D4 jumper, etc. form. The more common fiber jumpers can also be divided into FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST and so on.

1 Applications:
a. Local Area Network (LAN)
b. Data communication network
c. Telecommunication optical transmission network
d. Optical access network(OAN)
e. Active device termination
f. Fiber optics data transmission
g. Test Equipment and CATV
e. Gigabit Ethernet

2. Optical Fiber Patch Cord Characteristics

2.1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2.2 Ferrule End-face: PC,UPC,APC
2.3 Core Type: Single-mode (SM: 9/125um):G652D,G657A
Multimode(MM: 50/125um,62.5/125um,OM3 or OM4)
2.4 Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
2.5 Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
2.6 Cable Length: 1, 2, 3 meter or customized
2.7 Sheath Type: PVC, LSZH , OFNR, OFNP, Plenum ,Armored…

3 . Connector Specification

Specification Unit SC, FC, LC ST, MU, MT-RJ,SMA MTP,MPO E2000
Single-mode Multimode Single-mode Multimode Multimode Single-mode Single-mode
UPC APC PC UPC PC PC APC UPC APC
Insertion loss dB ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.7 ≤0.75 ≤0.3 ≤0.3
Return loss dB ≥50 ≥60 ≥30 ≥50 ≥30 ≥25 ≥45 ≥55 ≥75
Wavelength nm 1310/1510 1310/1510 1310/1510 1310/1510
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature -40~75 -40~75 -40~75 -40~75
Storage temperature -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9


MM FC-LC Fiber Optical Patch Cord 1 Meter PVC LSZH 100% 3D Test Indoor Multimode

4. Optical Cable Color
MM FC-LC Fiber Optical Patch Cord 1 Meter PVC LSZH 100% 3D Test Indoor Multimode
