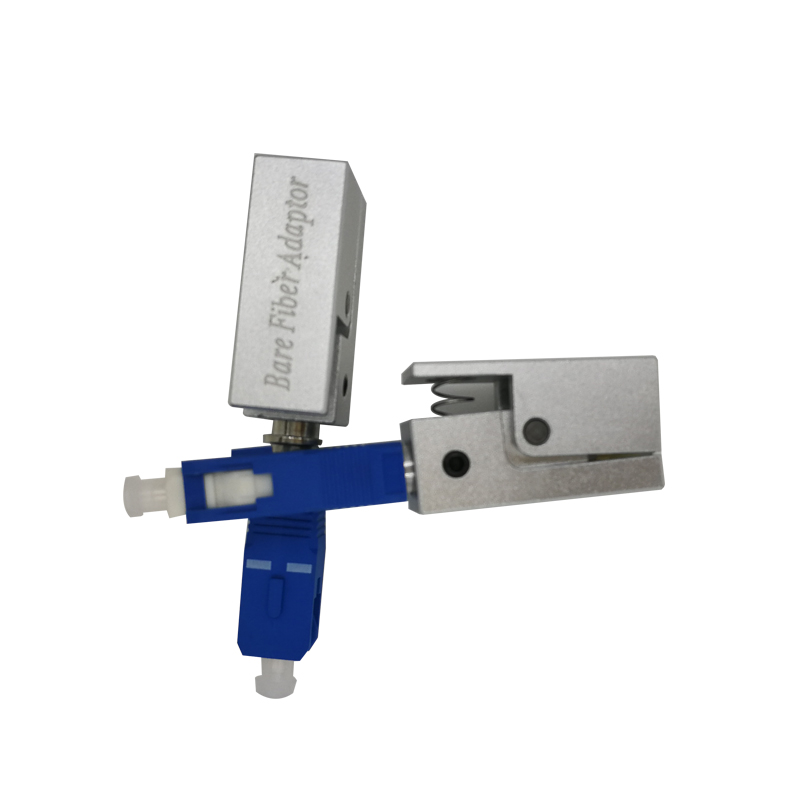

SC Bare fiber adaptor
Product introduction
Bare Fiber Adapter is a most affordable and easy method for temporarily connecting bare fiber with all industry standard connectors. Bare fiber adapter are used as the medium to link the bare optical fiber to fiber optic equipment.
It’s a very convenient way to connect unterminated fibers with standard FC, SC, ST, LC receptacles. You can simply strip, cleave, clean and insert the fiber, without the hassle of epoxy and epoxy curing steps. There are various types available: SC, FC, ST, SMA, LC, and so on. Both single mode and multi-mode types are available.
Features
High stability, easy to operate.
Length 40mm / diameter 13mm
Insertion loss: ≤1dB
Repeat ability: ≤ 0.2Db
Durability: ≥ 5000 time
Applications
Telecom network
Ethernet network
Optical communication equipment
Product Specification
| Parameter | Unit | LC, SC, FC, ST |
| SM | MM |
| PC | UPC | APC | PC |
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Durability | Time | >1000 |
| Operating Temperature | °C | -40~75 |
| Storage Temperature | °C | -45~85 |
Pictures
